Introduction

In the fast-evolving world of biosensors, the need for rapid, accurate detection of viruses, bacteria, and other pathogens is more critical than ever. Recent advancements in porous silicon technology, particularly the use of Schottky junctions, are revolutionizing the field of bio-detection. This breakthrough leverages the unique properties of porous silicon and the single-electron effect to create highly sensitive and efficient detection systems.

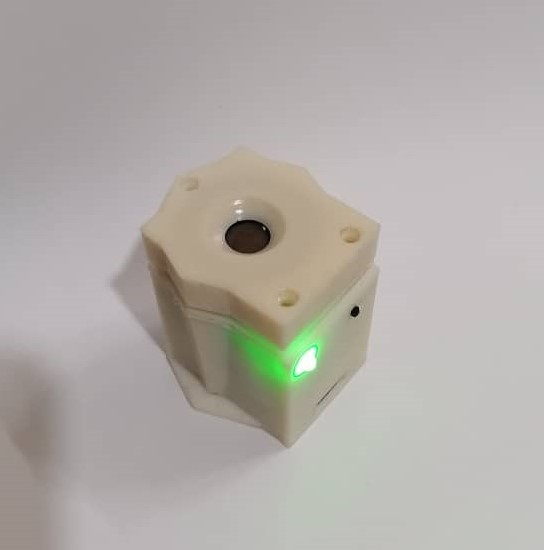

A small white object with a green light

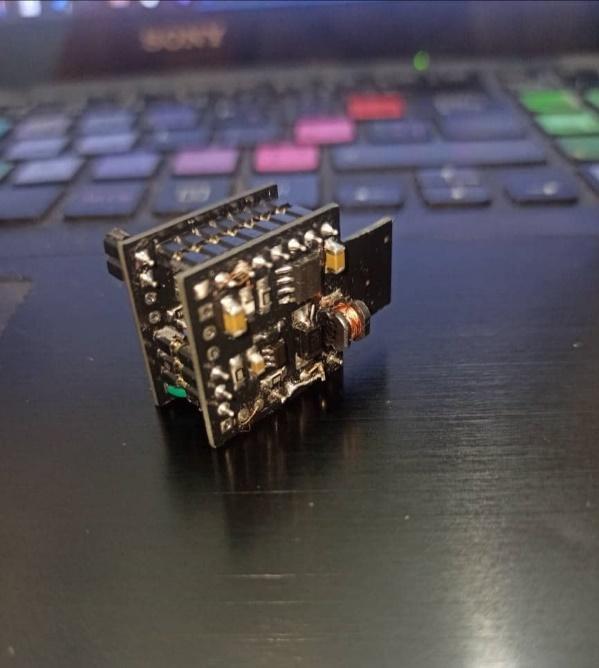

Description automatically generated A small black circuit board on a black surface

Description automatically generated

What is Porous Silicon Technology?

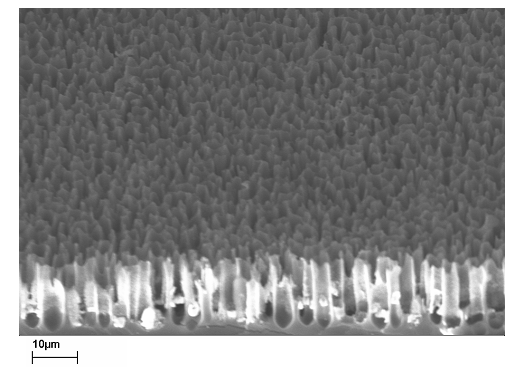

Porous silicon is a form of silicon that has been etched to create a sponge-like structure with a high surface area. This increased surface area enhances the material’s sensitivity to various substances, making it an ideal candidate for sensor applications. When combined with Schottky junctions—a type of semiconductor-metal junction—porous silicon can detect minute changes in the environment, such as the presence of specific pathogens.

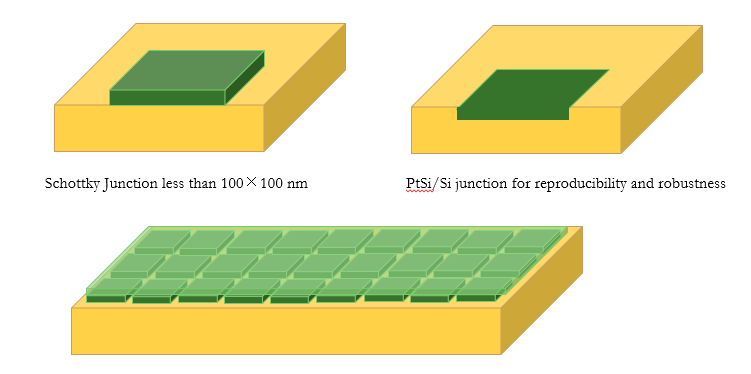

A diagram of a mattress

Description automatically generated with medium confidence

How It Works

The core principle behind this technology is the single-electron effect, where the presence of a single electron can significantly alter the electrical properties of a material. In the context of bio-detection, porous silicon sensors utilize this effect to identify pathogens based on their dipole moments.

Here’s a simplified breakdown of the process:

  1. Preparation: Porous silicon is created through anodic etching of n-type silicon wafers. The resulting structure has pores that can be as small as a few nanometers, significantly increasing the surface area.
  2. Schottky Junction Formation: Platinum is deposited into the pores, forming a Schottky junction with the silicon. This junction is sensitive to changes in the electric field caused by the presence of different substances.
  3. Detection: When a liquid containing pathogens is introduced to the porous silicon, the pathogens’ dipole moments alter the junction’s IV (current-voltage) characteristics. These changes are detected and analyzed to identify the specific pathogens present.

Advantages of Porous Silicon Sensors

  1. High Sensitivity: The large surface area of porous silicon, combined with the single-electron effect, allows for the detection of extremely low concentrations of pathogens.
  2. Rapid Response: The sensor’s ability to quickly register changes in the environment means that it can provide real-time detection of viruses and bacteria.
  3. Room Temperature Operation: Unlike other single-electron devices that require cryogenic temperatures, porous silicon sensors can operate at room temperature, making them more practical for everyday use.
  4. Cost-Effective and Easy to Produce: The fabrication process for porous silicon sensors is relatively straightforward and inexpensive, making it feasible for widespread use.

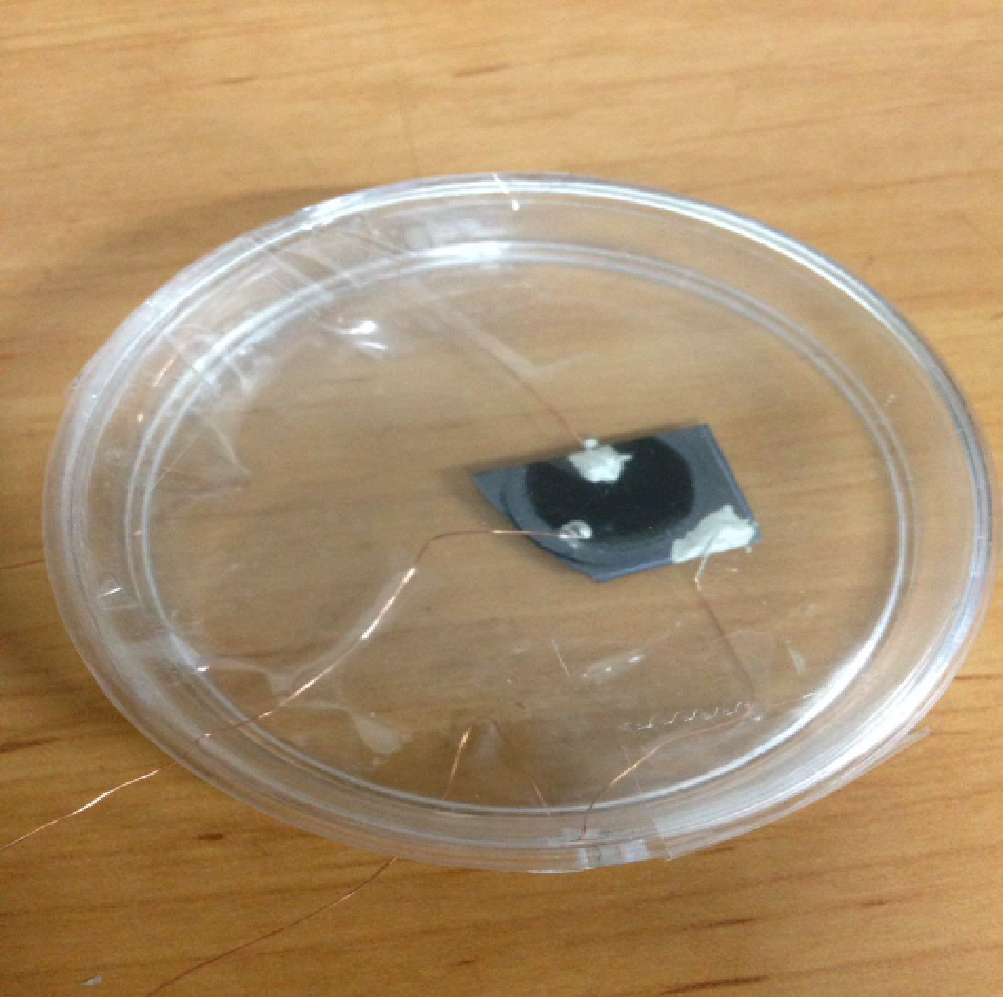

A close-up of a grey surface

Description automatically generated

Applications

The potential applications for porous silicon sensors are vast and varied:

  • Healthcare: Rapid detection of viruses like COVID-19 and bacteria in clinical settings.
  • Environmental Monitoring: Detection of pathogens in water supplies to prevent outbreaks of diseases.
  • Food Safety: Monitoring for contamination in food processing and storage.

Conclusion

Porous silicon technology, particularly when combined with Schottky junctions, represents a significant leap forward in the field of bio-detection. Its high sensitivity, rapid response time, and practical operating conditions make it a powerful tool in the fight against infectious diseases. As research and development continue, we can expect to see even more innovative applications for this groundbreaking technology, ultimately leading to safer and healthier communities worldwide.
